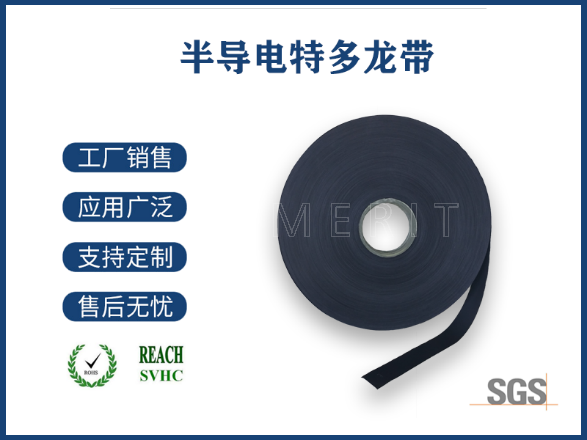

[產品說明]: 由特多龍帶經過半導電膠浸漬烘干成型，纖維經過充分梳理，縱向強度高，電阻小。Product Description: Made of Tetolon tape, via semi-conductive adhesive impregnated dry and forming, fiber after fully carding, high longitudinal strength, low resistance.[應用方式]: 適合用于電纜導體和絕緣線芯外，起
[產品說明]: 由特多龍帶經過半導電膠浸漬烘干成型，纖維經過充分梳理，縱向強度高，電阻小。
Product Description: Made of Tetolon tape, via semi-conductive adhesive impregnated dry and forming, fiber after fully carding, high longitudinal strength, low resistance.
[應用方式]: 適合用于電纜導體和絕緣線芯外，起綁扎、隔離作用，也可用于電纜金屬層下，起墊層、屏蔽作用。
Application: Suitable for cable conductors and outer of insulation wire cores, lashing, isolation, can also be used for cables under the metal layer, cushion and shield.
一、主要技術指標：
Main specification:
| 產品規格Specification（μm） | 基重Basis weight（g/m2） | 拉伸強度Tensile strength（N/cm） | 伸長率Elongation（%） | 表面電阻Surface resistance(Ω) | 體積電阻Volume resistance(Ω.cm) | 瞬間穩定性Short-term stability（℃） | 長期穩定性Long-term stability（℃） |
| 180±30 | 150±10 | 150↑ | 20↑ | 1000↓ | 1*106↓ | 230 | 145 |
| 200±30 | 170±10 | 200↑ | 20↑ | 1000↓ | 1*106↓ | 230 | 145 |
| 250±30 | 180±105 | 250↑ | 20↑ | 1000↓ | 1*106↓ | 230 | 145 |
| 除以上規格外，其它可按客戶特殊要求單獨設計。In addition to the above specifications, other special requirements can design according to customers | |||||||
二、顏色：黑色。
Color: Black
三、電氣特性：具有極高的強度，很好的屏蔽性，產品電阻小，具有半導電特性，易于各種電纜繞包和縱包加工。
Electrical characteristics: With good strength and good shielding, little resistance, with semi-conducting characteristics, used for wrapping of all kinds of power cables.
四、分切及包裝：分切最小寬度為5mm，內孔大小為52mm或76mm；收卷最大外徑為800mm，紙箱包裝。
Slitting and packaging: Slitting minimum width of 5mm, bore size of 52mm or 76mm; the winding maximum outer diameter of 800mm, carton packaging.
